ESD5500E Engine Speed Governor Kit with ADC120 Actuator & Magnetic Sensor, Professional 12V DC Electronic Governor for Generators

DetailsMounting Holes: They make it easy for you to mount the machine to your equipment.Rounded Edges: The rounded edges not only ensure safe use but also enhance the aesthetics of the product.ApplicationThis product is widely used for all kinds of generators together with ADC 12V.SpecificationsMaterial: Iron, Aluminium, Stainless SteelStyle: ModernColor: As Shown in the PicturePower Source: Corded ElectricOperating Voltage: 12V DCSteady State Stability: ±0.25% or BetterSpeed Range/Governor: 1K-7.5K HZ ContinuousSpeed Drift with Temperature: Max ±1%Speed Trim Range: ±200HZSpeed Switch Adjustment Range: 1000-10000HZAmbient Operating Temperature Range: -40°C-85°C/-40-185°FRelative Humidity: Up to 95%Inductance: 142MH+25%Max Resistance: 300 OhmsThread Size: 3/8-24UNF-2AProximity to Gear Teeth: 0.64-0.89mm/0.025-0.035inPackage Size: 21*21*21cm/8.27*8.27*8.27inGross Weight: 3kg/6.61lbsNet Weight: 2.8kg/6.17lbsPackage Included1*ESD5500E Speed Controller1*MSP6729 Magnetic Speed Sensor1*ADC120 Actuator

• Precision Speed Control: Features closed-loop control with ±0.25% steady-state stability for precise engine speed regulation in isochronous or droop mode. Works seamlessly with the included MSP6729 magnetic speed sensor and ADC120 actuator.
• Extreme Environment Ready: Built to perform reliably in harsh conditions, with an operating temperature range of -40°C to 85°C (-40°F to 185°F) and up to 95% relative humidity.
• Wide Compatibility & Easy Installation: Designed for use with various generators and engines. Includes detailed manual and simple mounting design with pre-drilled holes and rounded edges for safe, quick setup.

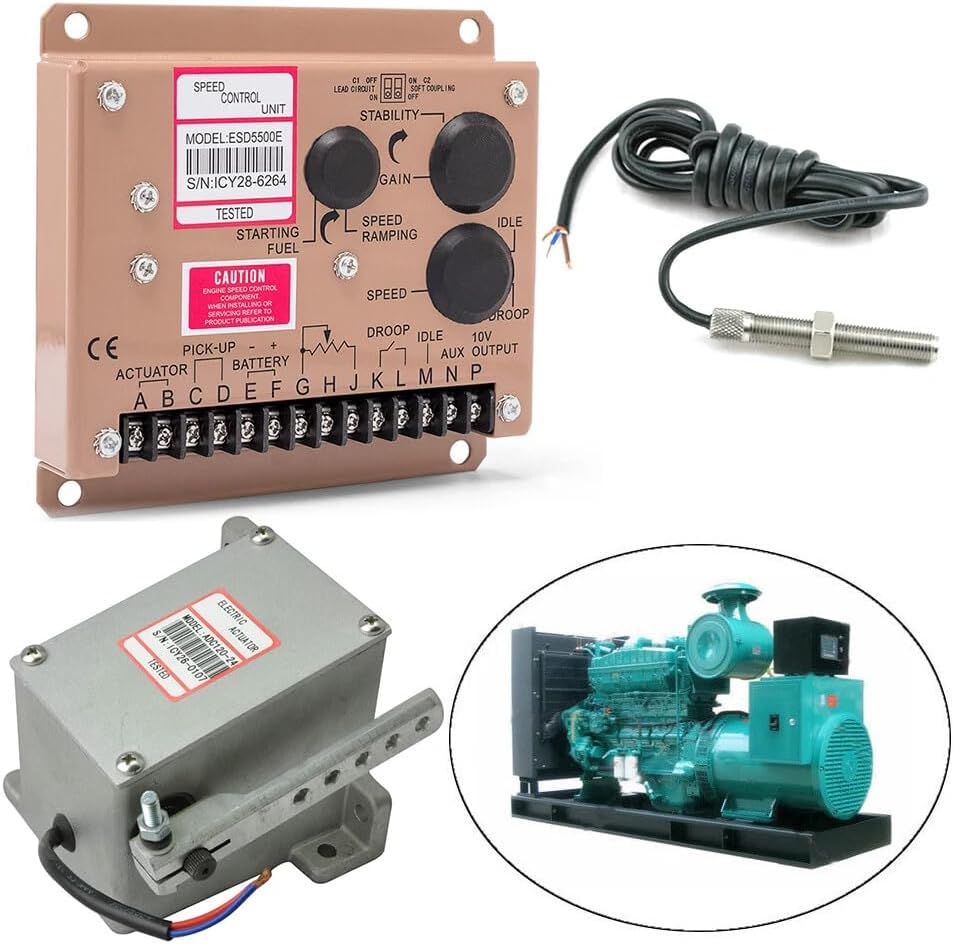

• All-in-One Professional Kit: Contains everything needed: 1× ESD5500E Speed Controller, 1× MSP6729 Magnetic Speed Sensor, and 1× ADC120 Actuator. It for upgrading generator performance or as a practical gift for technicians and engineers.
• Advanced Performance Features: Offers wide speed range adjustment (1K–7.5K Hz continuous), ±200 Hz trim range, and minimal speed drift (±1% max). Suitable for control cabinet or engine-mounted enclosure installation.
